WarDragon Drone Detection System
WarDragon Drone Detection System — Authorized Reseller
WarDragon is a field-proven, passive RF-based drone detection platform built on DragonOS and the TAK ecosystem. It detects, classifies, and tracks unmanned aircraft systems using software-defined radio technology, delivering real-time situational awareness to operators in the field, at fixed sites, or integrated into existing command infrastructure. Baseline detection runs fully local: no subscription, no cloud connection, no vendor lock-in.
How to Purchase: Select your configuration below and contact Sales@flyaerovis.com to request a quote or begin the procurement process. Our team will respond within one business day.
Detection Workflow
Detect → Process → Integrate
RF signals are captured by the SDR hardware, processed by DragonOS, and pushed to TAK-compatible platforms (ATAK, WinTAK, iTAK) or third-party C2 systems via standard interfaces. No cloud dependency. Fully offline-capable.
Shared Capabilities Across All Configurations
Remote ID drone detection over Wi-Fi (2.4 GHz and 5 GHz) and Bluetooth 5 Long Range
DJI OcuSync 2 and 3 detection, with baseline OcuSync 4 awareness (full OcuSync 4 demodulation and drone serial identification available via the optional DragonScope service)
Detection of both compliant and non-compliant drone activity, beyond basic Remote ID-only systems
Real-time pilot and drone geolocation
RF activity monitoring across supported wireless bands
DragonOS preloaded: a purpose-built Linux OS for SDR-based C-UAS operations
Flexible data routing: standalone local operation, ATAK/TAK via Cursor-on-Target (CoT) output, 4DV Analytics, WarDragon Analytics aggregation for single or multi-node arrays, or custom routing to your own endpoints
Open ecosystem. Your data, your platform. No subscription required for baseline operation.
Configuration Options
WarDragon comes in two form factors. Drop-In Kits are embedded detection nodes built for installation inside existing enclosures, vehicles, and infrastructure. Mobile Kits are self-contained systems in hardened carry cases that deploy in minutes with no installation required. Within each form factor, the Pro and Elite tiers build on each other: Pro delivers the core Remote ID and DJI detection, Elite steps up to x86 processing and adds dedicated FPV coverage.

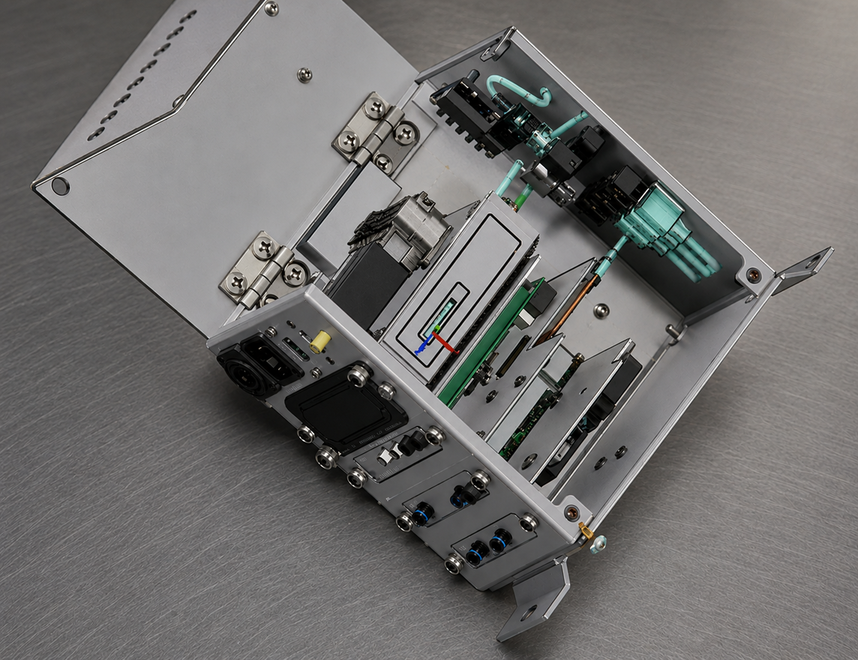

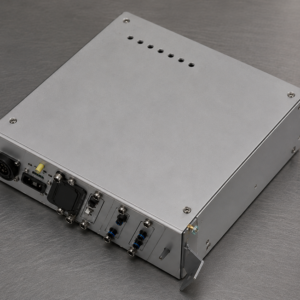

Drop-In Kits
Embedded detection nodes for fixed sites, vehicles, and existing infrastructure. DIN-rail mounted, powered by 12V/24V DC, and networked via DHCP WAN. Both kits pair with the Rapid Deployment Kit for standalone field use.
WarDragon Pro Drop-In — $4,995
The foundation of the WarDragon line. A compact drop-in module offering professional-grade RF detection in the most cost-effective configuration. ARM-based processing with full Remote ID and DJI OcuSync detection out of the box. Ideal for agencies deploying across multiple vehicles or locations.
Included: WarDragon ARM processor with DragonOS preloaded, WarDragon SDR for DJI detection, dual-band Wi-Fi adapter, Bluetooth 5 long-range adapter, and metal enclosure with DIN-rail clip and mounting hardware.
WarDragon Elite Drop-In — $7,995
The drop-in node, upgraded to Elite tier. Steps up from ARM to the x86 WarDragon Elite processor for higher compute capacity across RF and data workloads, and adds a dedicated FPV SDR covering 5 GHz and 900 MHz command-and-control signals. Designed for persistent site protection where FPV threats are part of the picture.
Adds over the Pro Drop-In: x86 Elite processor in place of ARM, dedicated FPV SDR (5 GHz / 900 MHz), Bluetooth 5 Long Range adapter, and standard paddle antenna set. Same enclosure, power, and networking.

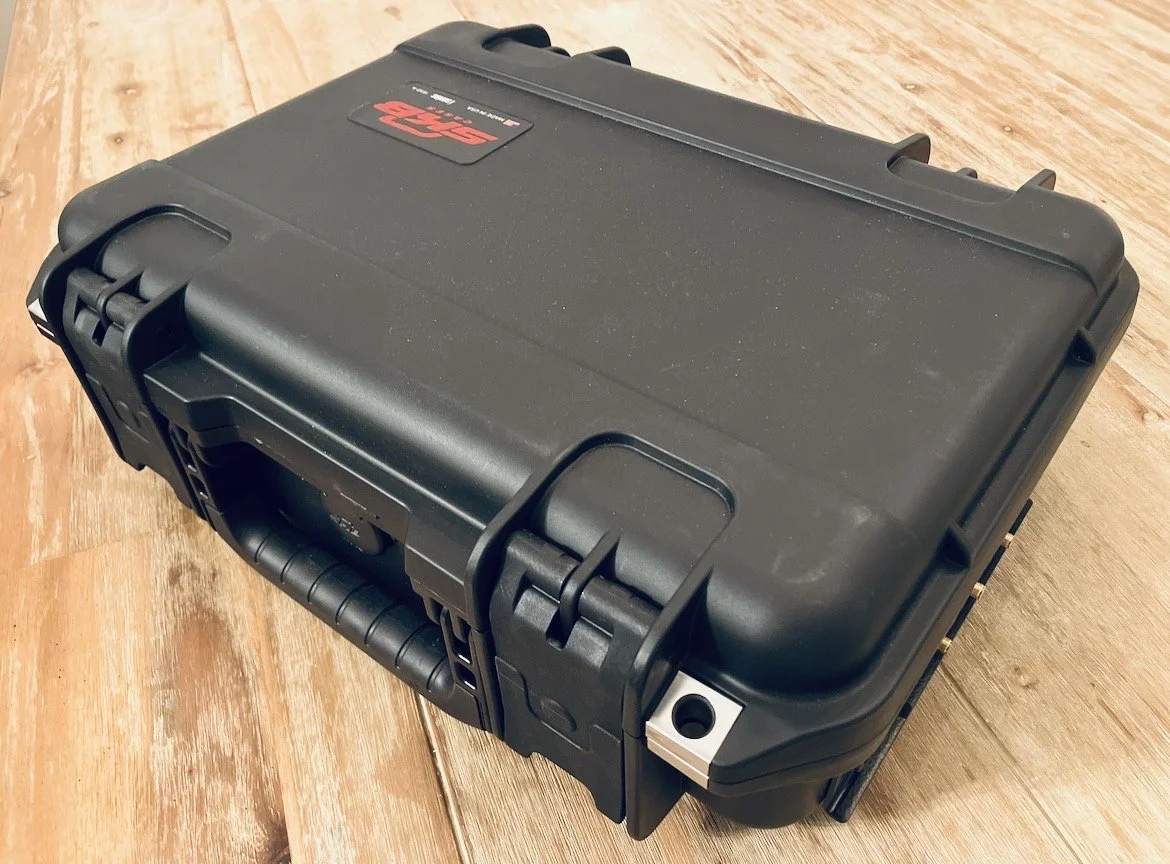

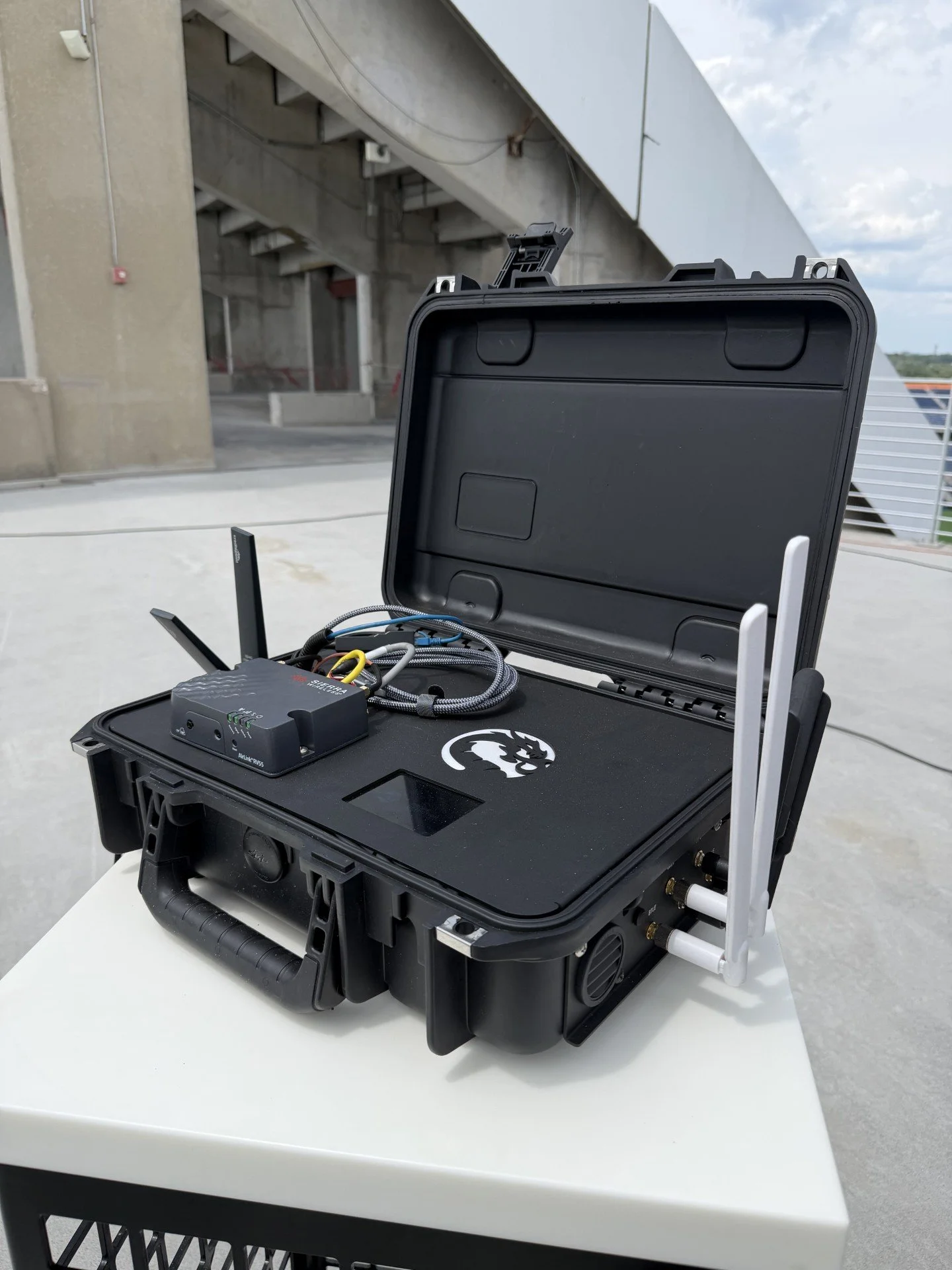

Mobile Kits
Self-contained portable systems in hardened carry cases with external SMA connections and AC and DC vehicle power. Deploy in minutes from a vehicle, command post, facility, event site, or temporary location.
WarDragon Pro v5 — $6,495
The standard professional mobile kit. The same detection core as the Pro Drop-In, built out into a fully portable system. Purpose-built for law enforcement, public safety, and security operations that need a capable field system with full TAK integration.
Included: WarDragon ARM processor with DragonOS preloaded, WarDragon SDR for DJI detection, dual-band Wi-Fi adapter, Bluetooth 5 adapter, paddle antennas, GPS antenna connection, hardened carry case with integrated cooling fans and locking external power connector, and AC (120V) and DC (12V/24V) vehicle power adapters.
WarDragon Elite — $9,495
The flagship. Elite x86 processing and the dedicated FPV SDR in the portable hardened case, for maximum detection coverage anywhere you need it. The highest-capability configuration for critical infrastructure, command post integration, and full-spectrum drone detection in the field.
Adds over the Pro v5: x86 Elite processor in place of ARM, dedicated FPV SDR (5 GHz / 900 MHz), Bluetooth 5 Long Range adapter, and a custom hardened case with external SMA, USB, and HDMI connections.
Available Add-Ons
DragonScope Drone ID Service — Annual software subscription adding OcuSync 4 demodulation and drone serial identification ($2,600/year, requires active internet connection)
FPV Detection Module — Dedicated SDR extending detection to 5 GHz and 900 MHz FPV command-and-control signals, for configurations without a built-in FPV SDR ($2,995)
4G Cellular Module — Sierra Wireless RV55 router for remote monitoring and data relay over cellular networks (carrier service, SIM, and data plan not included)
Antenna Packages — Magnetic-mount omnidirectional, extended-range directional, and site-specific antenna configurations
Rapid Deployment Kit — Converts a Drop-In kit into a standalone field system with weatherproof housing, tripod, travel case, and field power and network interfaces
Integration Support Package — Configuration and integration support, quoted per deployment
RF Modules AntSDR E200 — Available separately as a standalone add-on ($359.00)
GSA Schedule Procurement
Government agencies and federal contractors seeking to procure WarDragon through a GSA Schedule are welcome to inquire. WarDragon is available through the manufacturer's GSA contract vehicle. AeroVis can facilitate the procurement process and coordinate with the manufacturer on your behalf. Contact Sales@flyaerovis.com to discuss GSA options and agency-specific requirements.
Request a Quote
For pricing, deployment consultation, configuration guidance, or to request a demonstration, contact Sales@flyaerovis.com. Our team will respond within one business day.
